| Punch frequency | 10-20 times/min |
| Production capacity | 2400 plates/hour |
| Max. forming area & depth | 105*70mm(standard depth ≦15mm), Max. depth 25mm( customized) |
| Standard stroke range | 30-80mm(can be designed as user’s requirement) |
| Standard plate size | 80*70mm(can be designed as user’s requirement) |
| Air pressure | 0.4-0.6Mpa |
| Compressed air required | Air compressor≥0.3m³/min |
| Total power supply | 220V, 50Hz, 2.8kw |
| Main motor | 0.75kw |
| PVC hard Film | 0.15-0.5*110mm |
| PTP aluminum film | 0.02-0.035*110mm |
| Dialysis Paper | 50-100g*110mm |
| Mould cooling | Tap water or recycling water |
| Dimension | (L)1840*(W)900*(H)1300mm |
| Weight | Net weight: 480kg, gross weight: 550kg |
| Noise index | <75dBA |
Liquid Blister Packing Machine Description
Liquid Blister Packing Machine Application
The machine is suitable for industries of foodstuff, medicine, medical instruments, hardware, electronics and etc for packing.

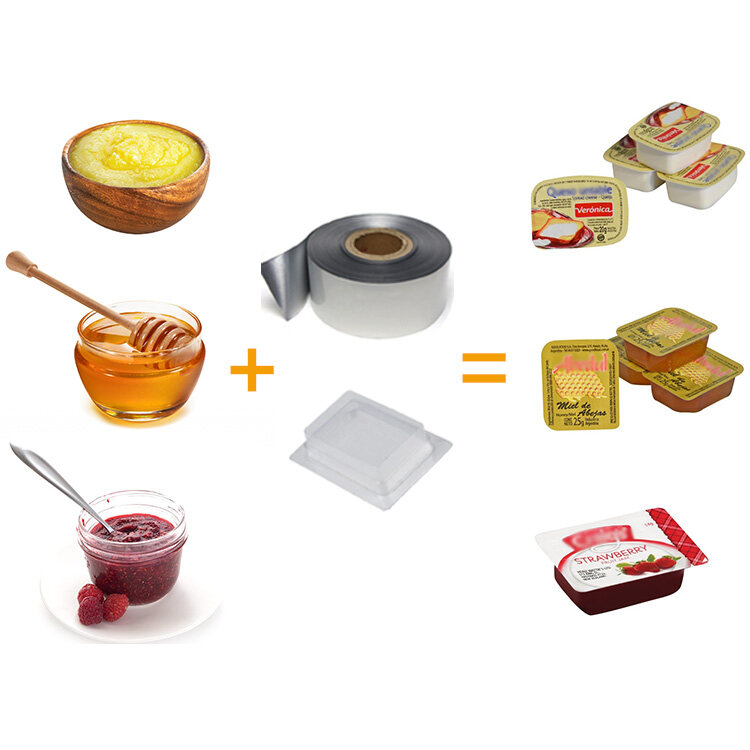

Such as honey, ketchup, jam, soy sauce, seasoning sauce, butter, nutrient solution, etc.
Liquid Blister Packing Machine Features
1. It adopts the newest type high-power transmission mechanism to arrange the chain and
drive the main driving shaft. The errors and noises of other gear wheel transmission can be avoided.
2. Imported controlling system is adopted. Also it can be equipped with detecting and rejection
function device for number of medicines according to the user’s requirement.
3. It adopts photoelectrical controlling system to make PVC, PTP, Aluminum/Aluminum
material to be automatically fed and waste side to be cut automatically to guarantee the
synchronous stability of over- length distance and multi stations.
4. It can be optional equipped with photocell correction device, imported stepper motor
traction and image- character register to optimize packing grade.
